Direct archive access

The Direct Archive Access module lets you load data from any local or remote archive of CDF or NetCDF files directly into Speasy — no web service required. Other formats (HAPI, plain text, your lab’s own binary format…) are supported through a pluggable codec system — see Supported file formats below.

This is useful when:

You have your own data files on disk or on a lab server
A public archive (e.g. CDAWeb) hosts files you want to access directly rather than through an API
You want to share a dataset configuration with colleagues

Once configured, the data appears in Speasy’s inventory and can be loaded with spz.get_data() like any other product.

How it works

Most space physics data archives follow a simple pattern: files are organized in folders by date (e.g. one CDF file per day, stored in yearly or monthly directories). Speasy exploits this predictable structure. You describe the URL pattern and file organization in a short YAML file, and Speasy handles the rest: it figures out which files to download for a given time range, loads them, and merges the results into a single SpeasyVariable.

Note

The data files must follow the ISTP (International Solar-Terrestrial Physics) CDF/NetCDF conventions — a standard set of metadata attributes (DEPEND_0, UNITS, FILLVAL, …) that most public space physics archives, including CDAWeb, already use. For non-ISTP files or other formats, see Adding support for a new file format below.

Supported file formats

Format	`codec:` value	Notes
CDF (ISTP)	`cdf` (or `application/x-cdf`)	Built in, no extra dependency. Default when `codec` is omitted.
NetCDF (ISTP)	`nc` or `nc4` (or `application/x-netcdf`, `application/netcdf`)	Requires the optional netCDF4 package (`pip install netCDF4`). Without it, any dataset declaring `codec: nc` is silently skipped with a warning at import time.
HAPI CSV	`hapi/csv` (exact name, no extension/mimetype alias)	Works with inline `variables:` datasets only — see the caveat in YAML field reference below.
HAPI Binary	`hapi/binary` (exact name, no extension/mimetype alias)	Same limitation as HAPI CSV.
Anything else	a name you choose	Write your own codec — see Adding support for a new file format.

Every spelling that resolves to the same codec is interchangeable: a codec registers itself under its own name plus each of its declared extensions and MIME types, and any of those keys works as a codec: value. For the two ISTP codecs the registered name happens to be the class name, so codec: IstpCdf and codec: IstpNetCDF work too — that is a property of those codecs, not a general rule, and your own codec will only answer to the name it declares. Resolution is a flat, case-sensitive lookup over a single shared namespace, so pick a distinctive name.

Quick start: adding a dataset

Step 1: Find the inventory directory

Create a YAML file (e.g. my_datasets.yaml) in Speasy’s user inventory directory. On Linux this is ~/.config/speasy/archive/, on macOS ~/Library/Application Support/speasy/archive/ (the LPP author segment only appears in the Windows path, %LOCALAPPDATA%\LPP\speasy\archive). The directory doesn’t exist until you create it, and only files ending in .yaml or .yml are loaded. You can confirm the exact path:

>>> import speasy as spz
>>> print(spz.data_providers.generic_archive.user_inventory_dir())

Tip

Want a working file to start from? Speasy ships one, themis_cdpp.yaml.example, describing 55 THEMIS L2 datasets hosted at CDPP. Copy it into the directory above, drop the .example suffix so it gets loaded, and restart Python. Its location:

>>> import os, speasy
>>> print(os.path.join(os.path.dirname(speasy.__file__), 'data', 'archive'))

The same folder holds cda.yaml, the inventory Speasy loads out of the box — which is why spz.inventories.data_tree.archive.cda already contains MMS and Arase (ERG) datasets before you add anything. Both files are also worth reading as real-world examples.

Step 2: Describe your dataset in YAML

Here is a minimal example for THEMIS-A FGM data hosted at CDPP, with one CDF file per day:

tha_fgm:
  inventory_path: my_data/THEMIS/THA
  master_cdf: http://cdpp.irap.omp.eu/themisdata/tha/l2/fgm/0000/tha_l2_fgm_00000000_v01.cdf
  split_frequency: daily
  split_rule: regular
  url_pattern: http://cdpp.irap.omp.eu/themisdata/tha/l2/fgm/{Y}/tha_l2_fgm_{Y}{M:02d}{D:02d}_v\d+.cdf
  use_file_list: true

Note

What is a master file? A master (or skeleton) file is a CDF/NetCDF that contains the dataset’s full metadata — variable names, units, labels, fill values — but no data records. Most archives publish one per dataset, precisely so tools can describe a dataset without downloading any actual data: CDAWeb serves them from https://cdaweb.gsfc.nasa.gov/pub/software/cdawlib/0MASTERS/, and CDPP from a 0000 directory next to the data years, as above. Speasy reads it once to fill the inventory; the values you get from get_data() always come from the real data files.

Your files don’t have to be remote. A local archive works the same way — just point url_pattern (and, if you have one, master_file) at a path, always with forward slashes even on Windows:

my_lab_data:
  inventory_path: my_data/LAB
  master_file: /home/me/data/master.cdf
  split_rule: regular
  url_pattern: /home/me/data/{Y}/{M:02d}/mydata_{Y}{M:02d}{D:02d}.cdf

Alternatively, you can describe the variables inline — no master file needed, and no network access at inventory build time. Speasy then needs the metadata a master file would have provided, so each variable carries its own meta block, alongside a dataset-level one:

my_dataset:
  inventory_path: my_data/MISSION/INSTRUMENT
  meta:
    Mission_group: MISSION
    Data_type: l2
  variables:
    Bx:
      meta:
        UNITS: nT
        CATDESC: B along X
    By:
      meta:
        UNITS: nT
        CATDESC: B along Y
  codec: nc
  split_rule: regular
  url_pattern: https://my_server.net/data/{Y}/{M:02d}/data_{Y}{M:02d}{D:02d}.nc

Warning

A bare list of names (variables: [Bx, By]) is not supported: the dataset is skipped and a warning is emitted in the log. Both the dataset-level meta and a meta for every variable are required.

Note

codec here has nothing to do with discovering variables (they’re already given) — it only tells Speasy how to decode the actual data files at fetch time. It defaults to cdf if omitted, so set it explicitly whenever url_pattern doesn’t point to CDF files, as above. An unrecognized codec skips the whole dataset with a warning at import time, rather than failing inside every subsequent get_data() call.

Important

The two meta blocks above do not travel the same way:

a variable’s meta (under variables:) is patched onto every get_data() result for that variable, on top of the attributes read from the data file itself;
the dataset-level meta only describes the dataset node you see when browsing the inventory (spz.inventories.data_tree.archive...). It never reaches a SpeasyVariable returned by get_data() — just like a CDF’s own global attributes don’t.

For the variable-level patching, meta_priority decides who wins when the YAML and the data file both define a field. Fields declared only in YAML always come through either way:

meta_priority: file  # default: YAML meta only fills fields the file doesn't have
meta_priority: yaml  # YAML meta overrides the file's own value on a clash

Or, if the data files are in a format other than CDF (e.g. NetCDF), point to a master file and specify the codec:

my_nc_dataset:
  inventory_path: my_data/MISSION/INSTRUMENT
  master_file: https://my_server.net/masters/dataset_master.nc
  codec: nc
  split_rule: regular
  url_pattern: https://my_server.net/data/{Y}/{M:02d}/data_{Y}{M:02d}{D:02d}.nc

Note

master_cdf is the legacy key for CDF master files. It is deprecated but remains supported. Prefer master_file + codec for new entries.

A master file’s own metadata can be patched too — add a meta block alongside master_file just like the inline format, controlled by the same meta_priority:

my_nc_dataset:
  inventory_path: my_data/MISSION/INSTRUMENT
  master_file: https://my_server.net/masters/dataset_master.nc
  codec: nc
  meta:
    Mission_group: MISSION       # the master doesn't have this: always added
    Data_type: corrected-l2      # the master does have this: only wins with meta_priority: yaml
  meta_priority: yaml
  split_rule: regular
  url_pattern: https://my_server.net/data/{Y}/{M:02d}/data_{Y}{M:02d}{D:02d}.nc

Step 3: Restart Python and use it

After saving the YAML file, restart your Python session (the inventory is built at import time):

>>> import speasy as spz
>>> # Your dataset now appears in the inventory
>>> spz.inventories.data_tree.archive.my_data.THEMIS.THA.tha_fgm
>>> # Get data as usual
>>> tha_b = spz.get_data("archive/my_data/THEMIS/THA/tha_fgm/tha_fgl_btotal", "2018-06-01", "2018-06-02")

Tip

The individual variables within each dataset (like tha_fgl_btotal) are discovered automatically from the master CDF file. Use tab-completion in IPython/Jupyter to explore them.

Tip

Speasy caches the result of reading a master file for 7 days, not just the raw download — if you only change the master file itself (not the YAML), restarting Python alone may not pick up the change for up to a week. See Troubleshooting below.

YAML field reference

Field	Description
dataset_name (top-level key)	A name for your dataset. This becomes the last part of the inventory path.
inventory_path	Where the dataset appears in `spz.inventories.data_tree.archive`. Slashes create a nested hierarchy (e.g. `my_data/THEMIS/THA` → `archive.my_data.THEMIS.THA`).
meta	Dataset-level metadata (e.g. `Mission_group`, `Data_type`). Required together with variables; optional alongside master_file/master_cdf, where it patches onto the metadata extracted from the master (see meta_priority for which side wins a clash). This block describes the dataset node in the inventory only — it is not added to the `SpeasyVariable` objects `get_data()` returns. Metadata that should reach `get_data()` results belongs in each variable’s own `meta`, under variables. Note that browsing the inventory only ever shows a curated subset of a master file’s own attributes (things like `CATDESC`, `UNITS`, `FILLVAL`) — anything else you want visible while browsing (e.g. `Mission_group`) must come from this meta block, not the master file.
meta_priority	`file` (default) or `yaml`. The single knob resolving every YAML-vs-file metadata clash in this dataset, at both levels: dataset-level meta vs. the master’s own dataset metadata when the inventory is built, and each variable’s inventory metadata vs. the real data file’s own attributes inside every `get_data()` call. Either way, fields declared only in YAML always come through. Inline variables datasets have no master to clash with, but it still arbitrates their `get_data()`-time patching.
variables	Inline description of the dataset’s variables, as a mapping of variable name to a `meta` block. Use this when you want to avoid any network access at inventory build time. Both a dataset-level meta and a `meta` for each variable are required — a bare list of names is skipped.
master_file	URL or local path to a master file in any supported format. Speasy opens it once with the specified codec to discover the variable names. Replaces `master_cdf` for non-CDF formats. If both master_file/master_cdf and variables are present, variables silently wins and the master is ignored entirely.
codec	Codec identifier used both to discover variables from `master_file` and, for any dataset (`master_file` or `variables`), to decode the actual data files at fetch time. Accepts a file extension (`cdf`, `nc`), a MIME type (`application/x-cdf`), a codec name (`hapi/csv`) or a class name. Optional, defaults to `cdf`; an unrecognized value skips the whole dataset with a warning at import time. A codec that can’t enumerate a master file’s variables (like the built-in HAPI codecs) also skips the dataset the same way — use variables with those instead.
master_cdf (deprecated)	URL or local path to a CDF master file. Speasy reads it once to discover which variables the dataset contains. Prefer `master_file` + `codec: cdf` for new entries.
split_rule	How the files are organized: `regular` (predictable, one file per time period) or `random` (variable-length files like burst data). See Randomly split datasets (burst data). Required, no default — see Troubleshooting for what happens if it’s missing.
split_frequency	Time granularity of the files: `daily` (default), `monthly`, `yearly`, or `none`. For `regular` datasets, this is how often a new file starts (`none` treats the whole dataset as one fixed file — see Fixed-URL datasets (no date placeholders)). For `random` datasets, this is how often a new folder starts (Speasy scans each folder for matching files).
url_pattern	The URL template for data files. Date placeholders are expanded for each time period. Can include Python regular expressions for unpredictable parts (e.g. file version numbers) when `use_file_list` is `true`. See the URL pattern placeholders table below. Always use forward slashes for directory separators, even for a local Windows path — see Platform notes (Windows, macOS, Linux).
use_file_list	If `true`, Speasy lists the files in each directory and keeps the highest one among those matching the URL pattern. Set this to `true` when parts of the filename are unpredictable (like version numbers). Default: `false`. Ignored for `random` split datasets, which always list their folders. Names are ordered naturally: digit runs compare as numbers, so `_v10` ranks above `_v9` and `_v5.10.0` above `_v5.9.1`, whether or not your version numbers are zero-padded.
fname_regex	Only for `random` split datasets. A Python regular expression to extract the start date (and optionally stop date and version) from each filename. See Randomly split datasets (burst data).
date_format	Only for `random` split datasets. A `strptime()` format string used to read the dates captured by fname_regex. Optional: without it the captured text is parsed automatically, which already handles the usual `20180605` / `20180605120000` / `2018-06-05` spellings. Set it when that automatic parsing fails or guesses wrong on your file names — e.g. `date_format: "%d%m%Y"` for a day-first `05062018` stamp, which is otherwise rejected as “month must be in 1..12”.

URL pattern placeholders

The url_pattern uses Python str.format() syntax. Available placeholders:

Placeholder	Meaning	Example output
`{Y}`	4-digit year	`2018`
`{y}`	2-digit year	`18`
`{M}`	Month (no padding)	`1` .. `12`
`{M:02d}`	Month (zero-padded)	`01` .. `12`
`{D}`	Day (no padding)	`1` .. `31`
`{D:02d}`	Day (zero-padded)	`01` .. `31`
`{j}`	Day of year	`1` .. `366`
`{H}`	Hour (24h)	`0` .. `23`
`{I}`	Hour (12h)	`0` .. `11`
`{p}`	AM/PM, paired with `{I}`	`AM` or `PM`

Regex parts of the pattern (like \d+ for version numbers) are interpreted whenever Speasy has to list a folder, i.e. when use_file_list: true or split_rule: random (which always lists). With split_rule: regular and use_file_list: false, the expanded pattern is used verbatim as a URL, so a \d+ in it would be requested literally.

Randomly split datasets (burst data)

Some datasets don’t produce one file per day. Instead, files cover irregular time intervals (e.g. burst-mode data that only records during events). For these, use split_rule: random.

The key difference is the fname_regex field: a regular expression that Speasy applies to each filename to extract the time range it covers.

mms1_fpi_brst_l2_des_moms:
  inventory_path: cda/MMS/MMS1/FPI/BURST/MOMS
  master_cdf: "https://cdaweb.gsfc.nasa.gov/pub/software/cdawlib/0MASTERS/mms1_fpi_brst_l2_des-moms_00000000_v01.cdf"
  split_rule: random
  split_frequency: monthly
  url_pattern: 'https://cdaweb.gsfc.nasa.gov/pub/data/mms/mms1/fpi/brst/l2/des-moms/{Y}/{M:02d}/mms1_fpi_brst_l2_des-moms_{Y}{M:02d}\d+_v\d+.\d+.\d+.cdf'
  use_file_list: true
  fname_regex: 'mms1_fpi_brst_l2_des-moms_(?P<start>\d+)_v(?P<version>[\d\.]+)\.cdf'

How it works: for each month in the requested time range, Speasy lists all files in the folder, applies fname_regex to extract the start time from each filename, keeps only the files that overlap with the requested interval, and loads them. If the file list looks stale (a fetch attempt gets an HTTP 404), Speasy automatically retries once with a fresh listing, in case a new file version appeared since the last time the folder was scanned. use_file_list is not needed here — a random dataset always lists its folders — but it is harmless, which is why real inventories often carry it.

fname_regex named groups:

(?P<start>...) — start date extracted from the filename (mandatory). Must be parsable as a date, either automatically or through date_format.
(?P<stop>...) — stop date (optional). If absent, Speasy assumes each file ends when the next one starts.
(?P<version>...) — file version (optional, but declare it if your archive keeps old versions around). When several files cover the same time range, only the highest version is loaded; version numbers compare component by component, so v10 supersedes v9 and v5.10.0 supersedes v5.9.1. Without this group nothing says which file supersedes which, so every overlapping file is loaded and merged instead — and if two files really do cover the same instant, Speasy logs a warning naming them, rather than silently keeping one.

Note

Files whose time ranges overlap are a dataset defect rather than something Speasy can repair: when one file’s timestamps run into the next file’s range, at most one of them can be right about when those samples were taken. Speasy keeps the file covering the overlap and drops the other’s samples inside it, so a result is always strictly increasing in time. Some legacy archives do this systematically — the digitised Alouette/ISIS ionograms are the known case, with overlapping boundaries on roughly one file in eight for some datasets — which is why they can return fewer records than the same request served by a web service that simply concatenates the files.

Fixed-URL datasets (no date placeholders)

If url_pattern has no {Y}/{M}/{D} placeholders at all — a single file that covers your whole dataset, rather than one file per period — set split_frequency: none. Without it, Speasy would still re-resolve (and re-fetch, subject to caching) the same unchanging URL once per default (“daily”) period covered by a query, which is wasted work for a file that never changes:

my_static_dataset:
  inventory_path: my_data/MISSION/INSTRUMENT
  meta:
    Mission_group: MISSION
  variables:
    Bx:
      meta:
        UNITS: nT
  split_rule: regular
  split_frequency: none
  url_pattern: https://my_server.net/data/full_mission.cdf

Metadata visibility & caching

A few things about metadata and caching are easy to miss:

Inventory browsing shows a curated subset of a master file’s attributes (things like CATDESC, FIELDNAM, UNITS, FILLVAL, LABLAXIS), not everything the file contains. get_data() results, by contrast, carry the file’s complete, unfiltered attribute set, read live from the fetched file. So a dataset-level attribute like Mission_group used in the examples above never comes from the master file’s own metadata — it only shows up in the inventory, and only if you declare it yourself via a dataset-level meta:.
Both sides of that split are variable-scoped. Whether it comes from the file or from YAML, everything on a get_data() result describes that variable. Dataset-wide metadata lives on the dataset node in the inventory (spz.inventories.data_tree.archive...) and is never copied onto the returned SpeasyVariable.
Master file extraction is cached for 7 days, on disk, across process restarts — not just the raw download, but the parsed result (variable names, metadata). If you only change the master file itself (not the YAML entry), a Python restart alone won’t pick up the change until the cache expires. See the Cache section to locate and clear Speasy’s disk cache if you need a fresher read sooner.
Reachability of a remote master is only host-level, not a check that the exact URL actually exists: Speasy checks that the server responds (cached for 2 minutes), then tries to fetch the master. A live host serving a 404 for that specific path fails the same way as a genuinely unreachable host — the dataset is silently skipped with a warning, not an error.
A local master file’s path is never checked for existence at inventory build time either — a typo’d local path is only caught when Speasy actually tries to open it, and produces the same silent “could not be loaded” warning as any other malformed entry.

get_data() on an archive product also accepts a few extra keyword arguments:

Keyword	Supported?
`force_refresh=True`	Yes — re-lists the remote folders instead of reusing the cached listing, and re-reads the data files instead of reusing their cached content. Useful right after a new file or a new file version was published.
`disable_cache=True` / `prefer_cache=True`	Yes — the usual cache-control kwargs, same as other providers.
`extra_http_headers=...` / `progress=...`	No — currently raises a `TypeError` if passed. These work for AMDA/CDA but aren’t wired through for archive datasets yet.

Troubleshooting

Most of the diagnostics below are emitted as log warnings, not exceptions. If you don’t see them, make sure logging is configured in your Python session:

import logging
logging.basicConfig(level=logging.WARNING)

A dataset builds fine but get_data() raises TypeError: get_product() missing 1 required positional argument: 'split_rule': your YAML entry is missing split_rule (or, similarly, url_pattern). Unlike most malformed-entry mistakes, these two aren’t validated until the first actual fetch, so the dataset can look completely normal in the inventory right up until you call get_data().
The log says several files cover the same time range: your archive keeps more than one version of a file and fname_regex has no (?P<version>...) group, so Speasy can’t tell which one is current and merges them all. Add the group — see Randomly split datasets (burst data).
A dataset silently doesn’t appear in the inventory at all: check the log for a warning — the usual causes are an unreachable/nonexistent master file, an unrecognized codec, or a codec that can’t enumerate a master file’s variables (see Supported file formats).
The log says Unknown codec 'nc' even though the spelling is right: the NetCDF codec is only registered when the optional netCDF4 package is importable. A missing dependency and a typo produce the same message — check python -c "import netCDF4" first.
The dataset appears but has no variables in it: the master file was read, but nothing in it looked like an ISTP data variable. Look for Non compliant ISTP file: ... in the log — the usual cause is pointing an ISTP codec (cdf/nc) at a file that doesn’t follow the ISTP conventions. Describe the variables with variables instead, or write a codec for that format.
get_data() returns None rather than raising: this is normal when the requested time range isn’t covered by any file, or falls entirely outside the dataset’s actual data range — it’s not an error. A misspelled split_rule (anything other than regular or random) produces exactly the same silent None, so check that spelling before investigating your time range.
Nothing changed after I updated my master file: see the 7-day caching note in Metadata visibility & caching above.

Extra inventory directories

Beyond the default user directory, you can tell Speasy to scan additional directories for YAML files:

[ARCHIVE]
extra_inventory_lookup_dirs = /shared/lab/speasy_inventories,/another/path

Or via the environment variable SPEASY_ARCHIVE_EXTRA_INVENTORY_LOOKUP_DIRS.

Platform notes (Windows, macOS, Linux)

The archive module has no platform-specific behavior beyond the following two points — everything else (YAML syntax, codecs, caching) works identically on every OS Speasy supports.

Always use forward slashes (``/``) for directory separators in url_pattern, even for a local Windows path (C:/data/{Y}/file_{Y}{M:02d}{D:02d}.cdf rather than backslashes). This isn’t just a style preference: whenever use_file_list: true or split_rule: random, Speasy splits the pattern into a folder and a filename regex on the last / — a pattern with no forward slash at all fails outright. Regex bits like \d+ inside the trailing filename segment are unaffected, since they don’t contain /.
Don’t prefix a local Windows path with file://. A bare path like C:/data/master.cdf (or C:\data\master.cdf) already works correctly as master_file/url_pattern — adding file:// in front only matters (and is only reliably handled) for genuine file:// URLs, and can misbehave with a drive letter when combined with use_file_list: true.

Default directories (set by the appdirs library speasy uses internally) differ by OS, and — on Linux only — the inventory directory and the codecs directory (see Adding support for a new file format) live under different bases:

OS	Default inventory directory	Default codecs directory
Linux	`~/.config/speasy/archive/`	`~/.local/share/speasy/codecs/`
macOS	`~/Library/Application Support/speasy/archive/`	`~/Library/Application Support/speasy/codecs/`
Windows	`%LOCALAPPDATA%\LPP\speasy\archive\`	`%LOCALAPPDATA%\LPP\speasy\codecs\`

Adding support for a new file format

There are two ways to teach Speasy a new file format, depending on what you need:

Writing a reusable codec (recommended) — the recommended approach for anything you’ll reuse: it integrates with the YAML inventory system (codec: your_codec_name), so your dataset gets discovered from a master_file (if your codec supports it), gets normal inventory/tab-completion support, and works exactly like a built-in format for anyone with your codec file installed.
One-off custom reader (quick, not YAML-integrated) — a quicker escape hatch for a one-off script: call get_product() directly with your own reading function. Nothing is registered, so it can’t be referenced from a YAML codec: entry, appear in tab-completion, or be discovered from a master file.

Writing a reusable codec (recommended)

A codec is a small class implementing speasy.core.codecs.codec_interface.CodecInterface:

Method / property	Required?
`load_variables(variables, file, cache_remote_files=True, **kwargs)`	Yes. Returns a `{name: SpeasyVariable}` mapping for the requested variable names.
`load_variable(variable, file, cache_remote_files=True, **kwargs)`	Yes. Same as above for a single variable (often just delegates to `load_variables`).
`save_variables(variables, file=None, **kwargs)`	Yes, but may simply `raise NotImplementedError` — a read-only codec is fine.
`list_variables(file)`	Only if you want `master_file:` discovery to work for this codec (see below). Otherwise leave it out — the default implementation raises `NotImplementedError`, and the dataset falls back to needing inline `variables:` instead.
`supported_extensions` / `supported_mimetypes` (properties)	Yes, may return an empty list if you’d rather only be selected by `name`.
`name` (property)	Yes. Must be globally unique — pick something distinctive and namespaced (e.g. `"my_lab/my_format"`), not a generic word.

Decorate the class with @register_codec and drop the file in Speasy’s user codecs directory (see the table in Platform notes (Windows, macOS, Linux) above), or any directory listed in the user_codecs_extra_dirs config entry / SPEASY_CORE_USER_CODECS_EXTRA_DIRS environment variable — every .py file there is loaded automatically the next time Speasy starts.

Warning

Codec files are executed directly, not imported as a regular module — keep this in mind before placing a file you didn’t write yourself in a codecs directory. Three consequences worth knowing before you write one:

A codec file that raises is logged as a warning and skipped, not an error that breaks import speasy. When a codec file throws an exception (syntax error, name collision, etc.), Speasy logs a warning with the file path and traceback, then continues loading other codecs. This means the error is contained — broken code can never break import speasy. Packaged entry-point codecs gain the same robustness (see Shipping a codec as a package below) plus avoid gotchas 2 and 3 below, which are specific to the exec() semantics of directory-based codec files.
Import codec/registry helpers from their submodules, not the speasy.core.codecs package itself: from speasy.core.codecs.codec_interface import CodecInterface and from speasy.core.codecs.codecs_registry import register_codec. Codec files load while that package is still mid-import, so importing from the package directly raises a circular ImportError.
Put every import a method needs inside that method, not at the top of the codec file — a top-level import numpy as np will raise NameError: name 'np' is not defined the first time a method tries to use it, because of how the file is executed. This doesn’t affect the class ...: and @register_codec lines themselves, only names used inside def bodies.

Minimal working example — a codec for a simple timestamp,var1,var2,... CSV file, supporting both inline variables: and master_file: discovery:

# ~/.local/share/speasy/codecs/my_csv_codec.py (or a dir listed in user_codecs_extra_dirs)

from speasy.core.codecs.codec_interface import CodecInterface
from speasy.core.codecs.codecs_registry import register_codec


@register_codec
class MyCsvCodec(CodecInterface):

    def _read(self, file):
        import csv
        with open(file, newline='') as f:
            rows = list(csv.reader(f))
        header, data = rows[0], rows[1:]
        return header, data

    def list_variables(self, file):
        header, _ = self._read(file)
        return header[1:]  # everything but the timestamp column

    def load_variables(self, variables, file, cache_remote_files=True, **kwargs):
        import numpy as np
        from speasy.products import SpeasyVariable, VariableTimeAxis, DataContainer

        header, data = self._read(file)
        columns = {name: i for i, name in enumerate(header)}
        time = np.array([row[0] for row in data], dtype='datetime64[ns]')
        return {
            name: SpeasyVariable(
                axes=[VariableTimeAxis(values=time)],
                values=DataContainer(values=np.array([float(row[columns[name]]) for row in data])),
            )
            for name in variables
        }

    def load_variable(self, variable, file, cache_remote_files=True, **kwargs):
        return self.load_variables([variable], file, cache_remote_files, **kwargs).get(variable)

    def save_variables(self, variables, file=None, **kwargs):
        raise NotImplementedError("read-only demo codec")

    @property
    def supported_extensions(self):
        return ["mycsv"]

    @property
    def supported_mimetypes(self):
        return []

    @property
    def name(self):
        return "my_csv_codec"

Used from a YAML inventory entry as codec: mycsv (or codec: my_csv_codec), either with a master_file: (thanks to list_variables) or an inline variables: block, exactly like a built-in format.

Shipping a codec as a package

A codec can be distributed as a normal Python package: declare a speasy.codecs entry point, and every environment that installs the package gets the codec registered automatically, with none of the import caveats that apply to codec files placed in the user directories.

[project.entry-points."speasy.codecs"]
my_format = "my_pkg.speasy_codec:register"

register is a zero-argument callable that performs the registration; it may register as many codecs as it wants:

from speasy.core.codecs.codec_interface import CodecInterface
from speasy.core.codecs.codecs_registry import register_codec

def register():
    register_codec(MyFormatCodec)
    register_codec(MyOtherFormatCodec)

The same package may also declare entry points for other Speasy plugin groups (for instance speasy.virtual_products, once virtual products land) next to its codecs.

A plugin that raises, at import or during registration, is reported as a warning and skipped: it can never break import speasy. Individual plugins can be turned off by listing their entry-point names in the SPEASY_CORE_DISABLED_PLUGINS environment variable (or the disabled_plugins entry of the CORE config section) — with the example above, SPEASY_CORE_DISABLED_PLUGINS=my_format disables that one plugin and nothing else. A bare name is matched in every plugin group; to disable a plugin in one group only, qualify the name with its group, e.g. speasy.codecs.my_format. This is also the reason to split unrelated codecs across several named entry points rather than one register that does everything: each name can then be disabled on its own.

One-off custom reader (quick, not YAML-integrated)

For a quick script or prototype, you can skip writing a codec entirely and call speasy.core.direct_archive_downloader.get_product directly with your own reader function. This bypasses the YAML inventory and codec registry completely — nothing is discoverable or reusable from a codec: entry, it’s just a plain function call.

Your reader function receives a file URL and a variable name, and returns a SpeasyVariable (or None):

from speasy.products import SpeasyVariable

def my_reader(url: str, variable: str, **kwargs) -> SpeasyVariable or None:
    # Load data from url, build and return a SpeasyVariable
    ...

Then call get_product with your reader:

from speasy.core.direct_archive_downloader import get_product

data = get_product(
    url_pattern="https://example.com/data/{Y}/{M:02d}/mydata_{Y}{M:02d}{D:02d}_v\d+.cdf",
    start_time="2023-06-19",
    stop_time="2023-06-20",
    variable="B",
    split_rule="regular",
    split_frequency="daily",
    use_file_list=True,
    file_reader=my_reader,
)

Example: reading non-ISTP Solar Orbiter LFR snapshots

This example shows a custom reader for Solar Orbiter RPW/LFR waveform snapshots. These files contain multiple snapshots at different sampling rates packed into a single CDF, so the standard reader cannot handle them.

import speasy as spz
from speasy.products import SpeasyVariable, VariableTimeAxis, DataContainer
from speasy.core.direct_archive_downloader import get_product
from speasy.core.any_files import any_loc_open
import numpy as np
import pycdfpp
import matplotlib.pyplot as plt

def snapshots_B_custom_reader(url, variable='B', sampling = 24576.):
    cdf=pycdfpp.load(any_loc_open(url,cache_remote_files=True).read())
    # all snapshots for different sampling rates are stored in the same variable
    # so we need to build an index of the snapshots with the desired sampling rate
    indexes = cdf["SAMPLING_RATE"].values[:] == sampling
    # build time axis from each snapshot start time and sampling rate
    star_times = pycdfpp.to_datetime64(cdf["Epoch"].values[indexes]).astype(np.int64)
    time = np.linspace(star_times, star_times+2048*int(1e9/sampling),num=2048).astype('datetime64[ns]').T.reshape(-1)
    sel_values = cdf[variable].values[indexes]
    values = np.empty((sel_values.shape[0]*sel_values.shape[2],3), sel_values.dtype)
    values[:,0] = sel_values[:,0,:].reshape(-1)
    values[:,1] = sel_values[:,1,:].reshape(-1)
    values[:,2] = sel_values[:,2,:].reshape(-1)
    if 'RTN' in variable:
        labels = ['Bxrtn', 'Byrtn', 'Bzrtn']
    else:
        labels = ['Bx', 'By', 'Bz']
    return SpeasyVariable(axes=[VariableTimeAxis(values= time)],values=DataContainer(values), columns=labels)


lfr_b_F2 = get_product(url_pattern="http://sciqlop.lpp.polytechnique.fr/cdaweb-data/pub/data/solar-orbiter/rpw/science/l2/lfr-surv-swf-b/{Y}/solo_l2_rpw-lfr-surv-swf-b_{Y}{M:02}{D:02}_v\d+.cdf",
                    start_time="2023-06-19T02:01:59",
                    stop_time="2023-06-19T02:02:08",
                    variable="B",
                    split_rule="regular",
                    split_frequency="daily",
                    use_file_list=True,
                    file_reader=snapshots_B_custom_reader,
                    sampling = 256.
                    )
plt.figure()
lfr_b_F2.plot()
plt.show()

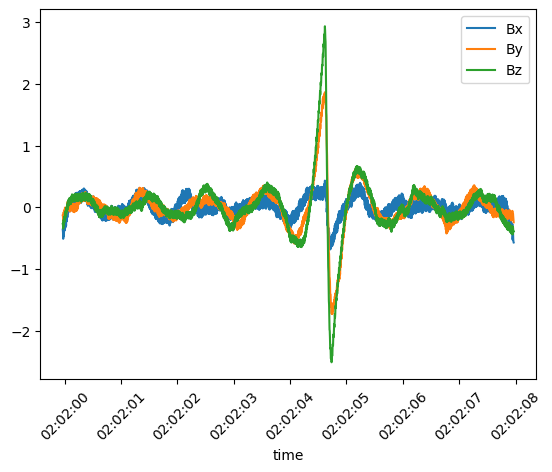

This produces the following plot:
