CDPP3DVIEW Provider examples

Only for Google Colab Users

[ ]:

%pip install --upgrade ipympl speasy

[ ]:

try:
    from google.colab import output
    output.enable_custom_widget_manager()
except:
    print("Not running inside Google Collab")

For all users

Enabling the cdpp3dview provider (required)

The cdpp3dview provider ships disabled by default because its web service has known issues that are still being addressed. If you skip this step, import speasy will load without cdpp3dview and every example below will fail.

To enable it, remove cdpp3dview from the disabled_providers configuration entry. The simplest way from a notebook is to set the SPEASY_CORE_DISABLED_PROVIDERS environment variable to an empty value before importing speasy, as done in the next cell.

Two alternatives that survive restarts:

  • set SPEASY_CORE_DISABLED_PROVIDERS="" in your shell before starting Jupyter, or

  • edit your Speasy configuration file (~/.config/speasy/config.ini on Linux) so that the [CORE] section contains disabled_providers = with an empty value — see the configuration page and the CDPP 3DView provider page for details.

[ ]:

import os

# Must run BEFORE `import speasy`: providers are enabled/disabled at import time
os.environ["SPEASY_CORE_DISABLED_PROVIDERS"] = ""

[1]:

import speasy as spz
%matplotlib inline
import matplotlib.pyplot as plt

Can't get data from proxy server http://sciqlop.lpp.polytechnique.fr/cache

Can't get inventory for provider cdpp3dview from proxy server http://sciqlop.lpp.polytechnique.fr/cache, status code 400

Show inventories

[2]:

print(list(spz.inventories.flat_inventories.cdpp3dview.parameters.keys()))

['GEOTAIL', 'WIND', 'SOHO', 'Pioneer10', 'Pioneer11', 'Voyager_1', 'Voyager_2', 'Mariner 10', 'MEX', 'Mars Odyssey', 'ULYSSES', 'Phobos2', 'Galileo', 'Cassini', 'ACE', 'Chandra (CXO)', 'CLUSTER1', 'CLUSTER2', 'CLUSTER3', 'CLUSTER4', 'Rosetta', 'HelioSwarm0', 'HelioSwarm1', 'HelioSwarm2', 'HelioSwarm3', 'HelioSwarm4', 'HelioSwarm5', 'HelioSwarm6', 'HelioSwarm7', 'HelioSwarm8', 'Stereo-A', 'Stereo-B', 'MESSENGER', 'THEMISA', 'THEMISB', 'THEMISC', 'THEMISD', 'THEMISE', 'VEX', 'COROT', 'Planck', 'SVOM', 'Jason 2', 'INTERBALL-Auroral', 'INTERBALL-Tail', 'Giotto', 'PICARD', 'MRO', 'MSL', 'Juno', 'JUICE', 'MAVEN', 'MMO', 'MPO', 'BepiColombo', 'Solar Orbiter', 'MGS', 'Parker Solar Probe', 'Europa Clipper', 'Proba2', 'ISEE1', 'ISEE2', 'ISEE3', 'Doublestar1', 'Doublestar2', 'IMP-8', 'POLAR', 'CHAMP', 'DEMETER', 'FAST', 'Freja', 'IMAGE', 'AMPTE-IRM', 'Oersted', 'Reimei', 'SDO', 'Swarm-A', 'Swarm-B', 'Swarm-C', 'Timed', 'TRACE', 'Helios1', 'Helios2', 'MMS1', 'MMS2', 'MMS3', 'MMS4', 'RBSPA', 'RBSPB', 'XMM', 'Herschel', 'Gaia', 'TGO', 'DSCOVR', 'EMM', 'ARASE', 'Akebono', 'Alouette1', 'Alouette2', 'AMPTE-CCE', 'AMPTE-UKS', 'New Horizons', 'Smile', 'Henri', 'Marguerite', 'Cassiope', 'CRRES', 'CSSWE', 'DE1', 'DE2', 'DMSPF06', 'DMSPF07', 'DMSPF08', 'DMSPF09', 'DMSPF10', 'DMSPF11', 'DMSPF12', 'DMSPF13', 'DMSPF14', 'DMSPF15', 'DMSPF16', 'DMSPF17', 'DMSPF18', 'DMSPF19', 'Equator-S', 'GOES06', 'GOES07', 'GOES08', 'GOES09', 'GOES10', 'GOES11', 'GOES12', 'GOES13', 'GOES14', 'GOES15', 'GOES16', 'Grace1', 'Grace2', 'Hawkeye', 'IMP-7', 'ISIS1', 'ISIS2', 'ISS', 'METOP1B', 'METOP2A', 'NOAA5', 'NOAA6', 'NOAA7', 'NOAA8', 'NOAA10', 'NOAA12', 'NOAA14', 'NOAA15', 'NOAA16', 'NOAA17', 'NOAA18', 'NOAA19', 'Ohzora', 'Rhessi', 'Rocsat1', 'Sampex', 'Scatha', 'SNOE', 'ST5a', 'ST5b', 'ST5c', 'TWINS1', 'TWINS2', 'UARS', 'Aureol-3', 'CNOFS', 'ICON', 'Chandrayaan-1', 'Kaguya', 'HERA', 'EscaPADE-B', 'EscaPADE-G', 'Sun', 'Mercury', 'Venus', 'Earth', 'Moon', 'Mars', 'Phobos', 'Deimos', 'Jupiter', 'Io', 'Europa', 'Ganymede', 'Callisto', 'Amalthea', 'Thebe', 'Saturn_barycenter', 'Saturn', 'Mimas', 'Enceladus', 'Tethys', 'Dione', 'Rhea', 'Titan', 'Hyperion', 'Iapetus', 'Phoebe', 'Helene', 'Telesto', 'Methone', 'Pallene', 'Anthe', 'Uranus', 'Ariel', 'Umbriel', 'Titania', 'Oberon', 'Miranda', 'Neptune', 'Triton', 'Neired', 'Pluto', 'Charon', 'Churyumov-Gerasimenko', 'Halley', 'Grigg-Skjellerup', 'Lutetia', 'Steins', 'Didymos', 'Dimorphos']

Completion works well

cdpp3dview tree is like

Trajectories
└── <BodyType>
    └── <Body>

[3]:

spz.inventories.tree.cdpp3dview.Trajectories.ASTEROID.Didymos

[3]:

<ParameterIndex: Didymos>

get_data() with string or ParameterIndex

[4]:

# with ParameterIndex as product
dimorphos_ParamIdx = spz.inventories.tree.cdpp3dview.Trajectories.ASTEROID.Dimorphos
dimorphos_SpzVar = spz.get_data(dimorphos_ParamIdx, '2008-1-1', '2008-1-2')
dimorphos_SpzVar

[4]:

SpeasyVariable(
    Name: 'pos',
    Time Range: 2008-01-01T00:00:00.000000000 - 2008-01-01T23:50:00.000000000
    Shape: (144, 3),
    Unit: 'km',
    Columns: ['x', 'y', 'z'],
    Meta: {
        CATDESC: 'position in J2000 frame',
        DISPLAY_TYPE: 'time_series',
        FIELDNAM: 'Position',
        UNITS: 'km',
        VAR_TYPE: 'data',
        DEPEND_0: 'Epoch',
        LABL_PTR_1: ['x', 'y', 'z'],
        },
    Size: '3.5 kB',
    )

[5]:

dimorphos_SpzVar.to_dataframe()

[5]:
x y z
2008-01-01 00:00:00 148738016.0 38082860.0 7979088.0
2008-01-01 00:10:00 148731184.0 38100460.0 7987508.5
2008-01-01 00:20:00 148724368.0 38118064.0 7995928.5
2008-01-01 00:30:00 148717536.0 38135664.0 8004348.5
2008-01-01 00:40:00 148710704.0 38153264.0 8012768.5
... ... ... ...
2008-01-01 23:10:00 147770688.0 40524640.0 9148443.0
2008-01-01 23:20:00 147763600.0 40542172.0 9156847.0
2008-01-01 23:30:00 147756496.0 40559700.0 9165252.0
2008-01-01 23:40:00 147749408.0 40577232.0 9173656.0
2008-01-01 23:50:00 147742304.0 40594760.0 9182060.0

144 rows × 3 columns

[6]:

# With String as product
ace_product_str = 'cdpp3dview/ACE'
spz.get_data(ace_product_str, '2008-1-1', '2008-1-2')

[6]:

SpeasyVariable(
    Name: 'pos',
    Time Range: 2008-01-01T00:00:00.000000000 - 2008-01-01T23:50:00.000000000
    Shape: (144, 3),
    Unit: 'km',
    Columns: ['x', 'y', 'z'],
    Meta: {
        CATDESC: 'position in J2000 frame',
        DISPLAY_TYPE: 'time_series',
        FIELDNAM: 'Position',
        UNITS: 'km',
        VAR_TYPE: 'data',
        DEPEND_0: 'Epoch',
        LABL_PTR_1: ['x', 'y', 'z'],
        },
    Size: '3.5 kB',
    )

get_data() with an extra coordinate_frame argument

Each trajectory can be requested in any coordinate frame supported by the server (the default is J2000). If the frame you ask for is not available, get_data() raises a Cdpp3dViewWebException whose message lists the available frames, as shown in the second cell below.

[7]:

spz.get_data(ace_product_str, '2008-1-1', '2008-1-2', coordinate_frame="HEEQ")

[7]:

SpeasyVariable(
    Name: 'pos',
    Time Range: 2008-01-01T00:00:00.000000000 - 2008-01-01T23:50:00.000000000
    Shape: (144, 3),
    Unit: 'km',
    Columns: ['x', 'y', 'z'],
    Meta: {
        CATDESC: 'position in HEEQ frame',
        DISPLAY_TYPE: 'time_series',
        FIELDNAM: 'Position',
        UNITS: 'km',
        VAR_TYPE: 'data',
        DEPEND_0: 'Epoch',
        LABL_PTR_1: ['x', 'y', 'z'],
        },
    Size: '3.5 kB',
    )

[8]:

from speasy.data_providers.cdpp3dview import Cdpp3dViewWebException
from sys import stderr
# with no such frame raises exception , show available frames
try:
    spz.get_data(ace_product_str, '2008-1-1', '2008-1-2', coordinate_frame="HEEY")
except Cdpp3dViewWebException as e:
    print("ERROR IN ARGUMENTS", file=stderr)
    print(str(e), file=stderr)

ERROR IN ARGUMENTS
Coordinate frame 'HEEY' is not available.
Available frames are: ['J2000', 'ECLIPJ2000', 'HEE', 'HEEQ', 'HCI', 'IAU_SUN', 'MESO', 'MEME', 'MECLIP', 'MESE', 'MESEQ', 'IAU_MERCURY', 'VSO', 'VME', 'IAU_VENUS', 'GSE', 'EME', 'GSEQ', 'ECLIPDATE', 'MAG', 'GSM', 'SM', 'IAU_EARTH', 'LSE', 'LME', 'IAU_MOON', 'MSO', 'MME', 'IAU_MARS', 'PSE', 'PME', 'DSE', 'DME', 'JSO', 'JEME', 'JECLIP', 'JSM', 'SYSTEM_3', 'IAU_JUPITER', 'IPHIO', 'EPHIO', 'GPHIO', 'CPHIO', 'KSO', 'KEME', 'KECLIP', 'KSM', 'IAU_SATURN', 'MIIS', 'ENIS', 'TEIS', 'DIIS', 'RHIS', 'TIIS', 'UEME', 'UECLIP', 'USO', 'IAU_URANUS', 'NEME', 'NECLIP', 'NSO', 'IAU_NEPTUNE', 'PEME', 'PECLIP', 'PSO', 'IAU_PLUTO', '67PCG_EME', '67PCG_CSO', 'LUTETIA_EME', 'LUTETIA_CSO', 'STEINS_EME', 'STEINS_CSO', 'HALLEY_EME', 'HALLEY_CSO', 'GRIGGSKELL_EME', 'GRIGGSKELL_CSO', 'IAU_DIDYMOS', 'DIDYMOS_EME', 'DIDYMOS_CSO']

What happens with an out-of-range date range?

If you request a time interval outside of the body’s definition range, Speasy prints a warning and get_data() returns None instead of a SpeasyVariable.

[9]:

spz.get_data(ace_product_str, '1900-1-1', '1900-1-2')

You are requesting ACE outside of its definition range <DateTimeRange: 1997-08-26T17:48:00+00:00 -> 2026-03-22T17:49:00+00:00>

Request other sampling than default ‘600’

[10]:

# with default 600
spz.get_data(ace_product_str, '2008-01-01T12:00:00', '2008-01-01T13:00:00').to_dataframe().head()

[10]:
x y z
2008-01-01 12:00:00 -26201596.0 131450416.0 57144592.0
2008-01-01 12:10:00 -26219240.0 131447448.0 57143312.0
2008-01-01 12:20:00 -26236884.0 131444472.0 57142032.0
2008-01-01 12:30:00 -26254528.0 131441496.0 57140748.0
2008-01-01 12:40:00 -26272170.0 131438520.0 57139468.0
[11]:

# with sampling = one minute
spz.get_data(ace_product_str, '2008-01-01T12:00:00', '2008-01-01T13:00:00', sampling='60').to_dataframe().head()

[11]:
x y z
2008-01-01 12:00:00 -26201596.0 131450416.0 57144592.0
2008-01-01 12:01:00 -26203360.0 131450120.0 57144464.0
2008-01-01 12:02:00 -26205124.0 131449824.0 57144336.0
2008-01-01 12:03:00 -26206890.0 131449528.0 57144208.0
2008-01-01 12:04:00 -26208654.0 131449232.0 57144080.0

Other utilities

[12]:

spz.cdpp3dview.parameter_range("Pioneer10")

[12]:

<DateTimeRange: 1972-03-05T12:00:00+00:00 -> 2049-12-31T00:00:00+00:00>

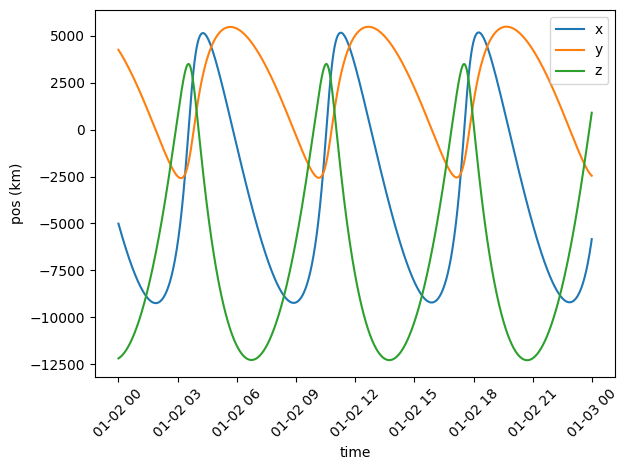

A Simple Example with MEX trajectory in frame MSO

[13]:

plt.figure()
mex_parameter = spz.inventories.tree.cdpp3dview.Trajectories.SPACECRAFT.MEX
mex_traj = spz.get_data(mex_parameter, '20200102', '20200103', coordinate_frame="MSO", sampling=60)
mex_traj.plot()
plt.tight_layout()
plt.show()
../_images/examples_Cdpp3dView_27_0.png
